WM NestPro 3721 Auto-Load CNC Nesting Cell

by Woodie Machinery
$96,500.00

Notify me when back in stock

A full nesting cell for cabinet shops that have outgrown operator-fed CNC work. The automatic sheet loader pulls board from a stack up to 24 in tall, the 146 x 83 in table takes oversize panels without repositioning, and the offload arm sweeps finished parts to a labelling station, so one person can keep the cell running while working elsewhere in the shop.

The 16 HP spindle and 12-station linear changer handle nesting, drilling, grooving and edge profiling in one pass. Nine independent vacuum zones mean small offcut parts stay held down late in the program, which is where most nesting machines start throwing parts.

Key features

  • Automatic vacuum sheet loader, 24 in stack capacity
  • Powered offload arm with brush table and label print-and-apply station
  • 16 HP air-cooled spindle with 12-station linear tool changer
  • Nine independently switched vacuum zones
  • Twin 9-spindle boring banks on 32 mm System 32 pitch
  • Automatic tool measurement, lubrication and spindle diagnostics
  • Nesting software licence with cut-list import and offcut management

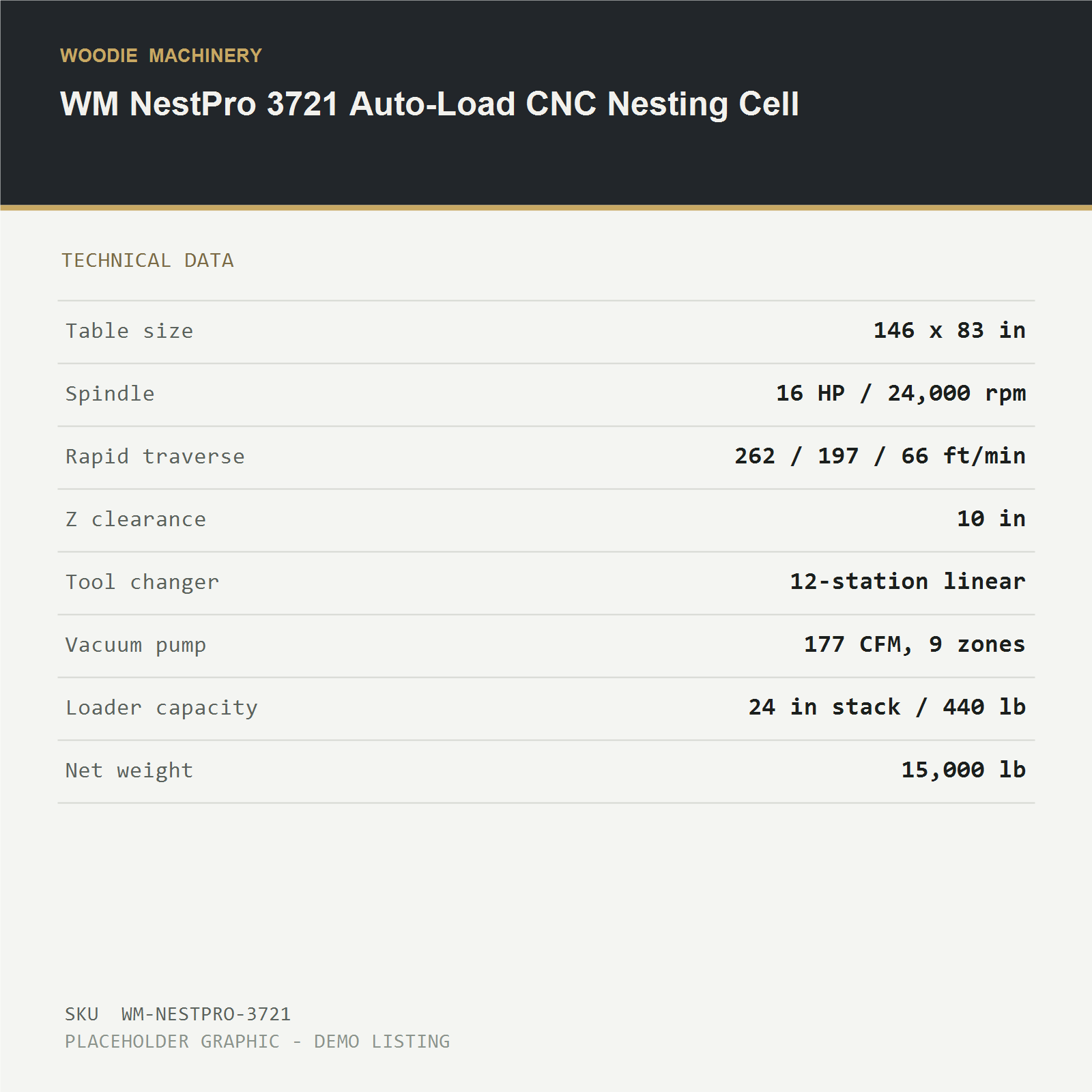

Technical specifications

  • Table size: 146 x 83 in
  • Spindle: 16 HP, 24,000 rpm, air cooled
  • Rapid traverse: 262 / 197 / 66 ft/min (X/Y/Z)
  • Z clearance: 10 in
  • Tool changer: 12-station linear, ISO-30
  • Boring: two 9-spindle banks, 32 mm pitch
  • Vacuum pump: 177 CFM, 9 zones
  • Loader capacity: 24 in stack height, 440 lb per sheet
  • Footprint: 386 x 173 x 94 in including loader and offload
  • Net weight: 15,000 lb

Site services required

  • Electrical: 230 V or 460 V 3-phase 60 Hz. 110 A at 230 V, 55 A at 460 V
  • Compressed air: 115 PSI minimum, 21 SCFM clean dry air
  • Dust extraction: one 8 in port, 2,120 CFM minimum
  • Floor: Level concrete, 6 in minimum slab

Supplied with

  • Nesting software licence, single seat, first year updates included
  • Starter tooling set and two spare spoilboards
  • Label printer and one roll of thermal labels
  • Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
