WM SlideCut 3200 Sliding Table Panel Saw
$17,750.00
An industrial sliding table panel saw for straight-line sheet breakdown and solid timber sizing. The 10 ft 6 in sliding carriage runs on hardened ground rails with recirculating ball bearings, so the table stays parallel to the blade under a full sheet rather than deflecting as the load moves out over the end.
The scoring blade is the part that earns its keep on melamine and two-sided laminate. It cuts a shallow kerf ahead of the main blade so the face fibres are severed before the main blade lifts them, which is the difference between a clean edge and one that needs filling or hiding behind edge tape.
Key features
- 10 ft 6 in sliding carriage on hardened ground rails
- Independent scoring blade for chip-free melamine and laminate
- Electric rise, fall and tilt on the main blade with digital readout
- Cast iron main table with ground surface
- Telescopic crosscut fence with two flip stops
- Rip fence with fine adjustment and digital scale
- Overhead blade guard with integrated extraction

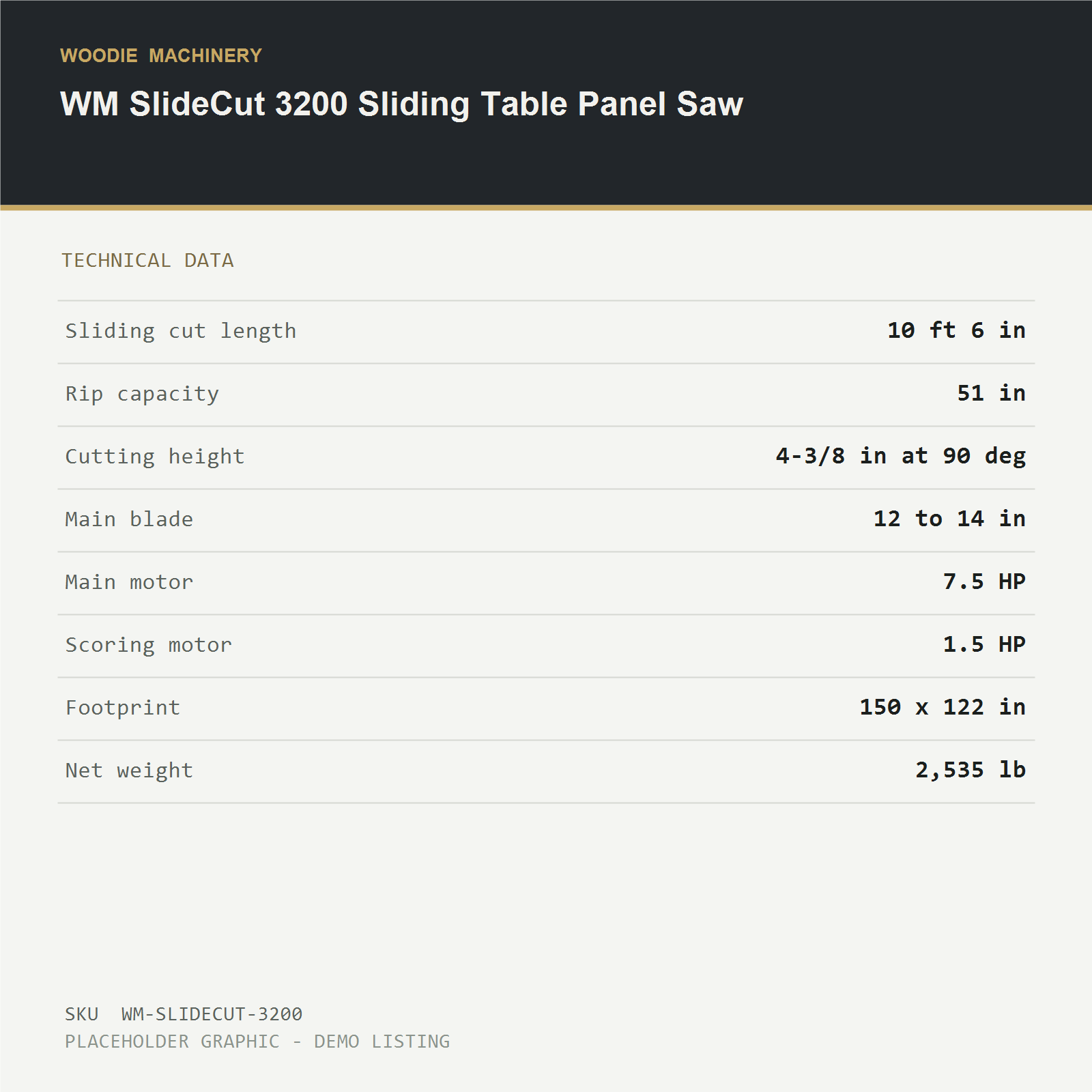

Technical specifications
- Sliding cutting length: 10 ft 6 in
- Crosscut capacity: 126 in
- Rip capacity: 51 in
- Cutting height: 4-3/8 in at 90 degrees, 2-3/4 in at 45 degrees
- Main blade: 12 to 14 in diameter
- Scoring blade: 4-3/4 in diameter
- Main motor: 7.5 HP
- Scoring motor: 1.5 HP
- Blade speed: 3,800 and 5,200 rpm
- Footprint: 150 x 122 x 35-1/2 in
- Net weight: 2,535 lb
Site services required
- Electrical: 230 V 3-phase 60 Hz, 44 A
- Dust extraction: one 5 in and one 3 in port, 825 CFM total
- Floor: Level concrete, machine must be levelled and bolted
Supplied with
- One main blade and one scoring blade fitted
- Telescopic crosscut fence, two flip stops and rip fence
- Overhead blade guard and extraction hose
- Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
