WM VertiCut 4200 Vertical Panel Saw
$14,300.00
A vertical panel saw for shops where floor space costs more than cycle time. Standing upright against a wall it occupies about 13 sq ft of floor, yet it breaks down full 4 x 8 ft sheets in both directions without the operator ever lifting a board flat onto a table. For a small joinery, a sign shop or a site workshop, it does the job of a machine four times its footprint.
The saw head rotates 90 degrees for crosscuts and rips on the same frame, and the scoring pass handles melamine faces without chipping.
Key features
- Rotating saw head for vertical crosscuts and horizontal rips on one frame
- Scoring pass function for chip-free melamine and laminate
- Counterbalanced head that holds position anywhere on the travel
- Roller-mounted panel support with adjustable stops both axes
- Digital scale on both axes reading to 1/32 in
- Wall-mounted or free-standing frame options

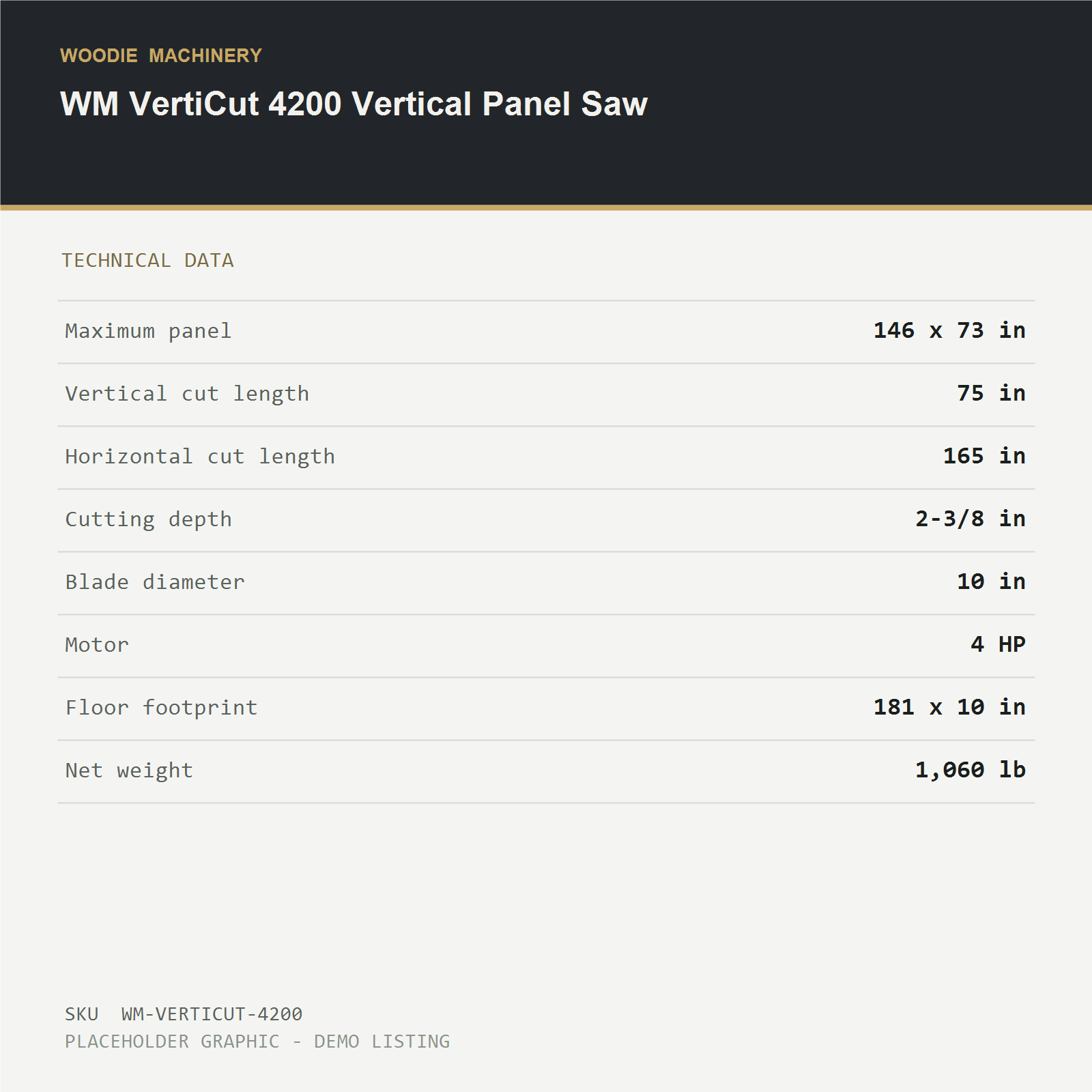

Technical specifications
- Maximum panel: 146 x 73 in
- Vertical cut length: 75 in
- Horizontal cut length: 165 in
- Cutting depth: 2-3/8 in
- Blade diameter: 10 in
- Motor: 4 HP
- Blade speed: 4,500 rpm
- Floor footprint: 181 x 10 in, 78 in high
- Net weight: 1,060 lb
Site services required
- Electrical: 230 V 3-phase 60 Hz, 28 A, or 240 V single phase on request
- Dust extraction: one 4 in port, 470 CFM minimum
- Wall: Structural wall required for wall-mounted configuration
Supplied with
- One 10 in combination blade fitted, one spare
- Digital scales both axes, two flip stops
- Wall mounting kit and leveling feet
- Self-install with phone commissioning support
