WM CompactBand 350 Automatic Edgebander
$27,550.00
A space-efficient automatic edgebander for shops that need pre-milling and corner rounding but do not have the floor length for a full production line. At 11 ft 8 in it fits along a wall in a unit where a 20 ft machine will not go, yet it still runs the complete station set: pre-mill, glue, feed, end trim, fine trim, corner round, scrape and buff.
The pre-milling unit is what separates this from entry-level compact banders. Removing 1/32 in per side before glue squares the panel and takes off saw marks, which is the difference between a joint that stays closed and one that shows a line after the first humid season.
Key features
- Twin-motor pre-milling unit with chip deflector
- Teflon-coated glue pot, EVA and PUR capable
- Automatic coil magazine with strip capability to 3 mm
- Twin end-trim saws with pneumatic chamfer adjustment
- Twin fine-trim motors with copy rollers
- Corner rounding unit with servo positioning
- Flat and radius scrapers plus cloth buffing wheels
- Touchscreen recipe control with 30 program positions

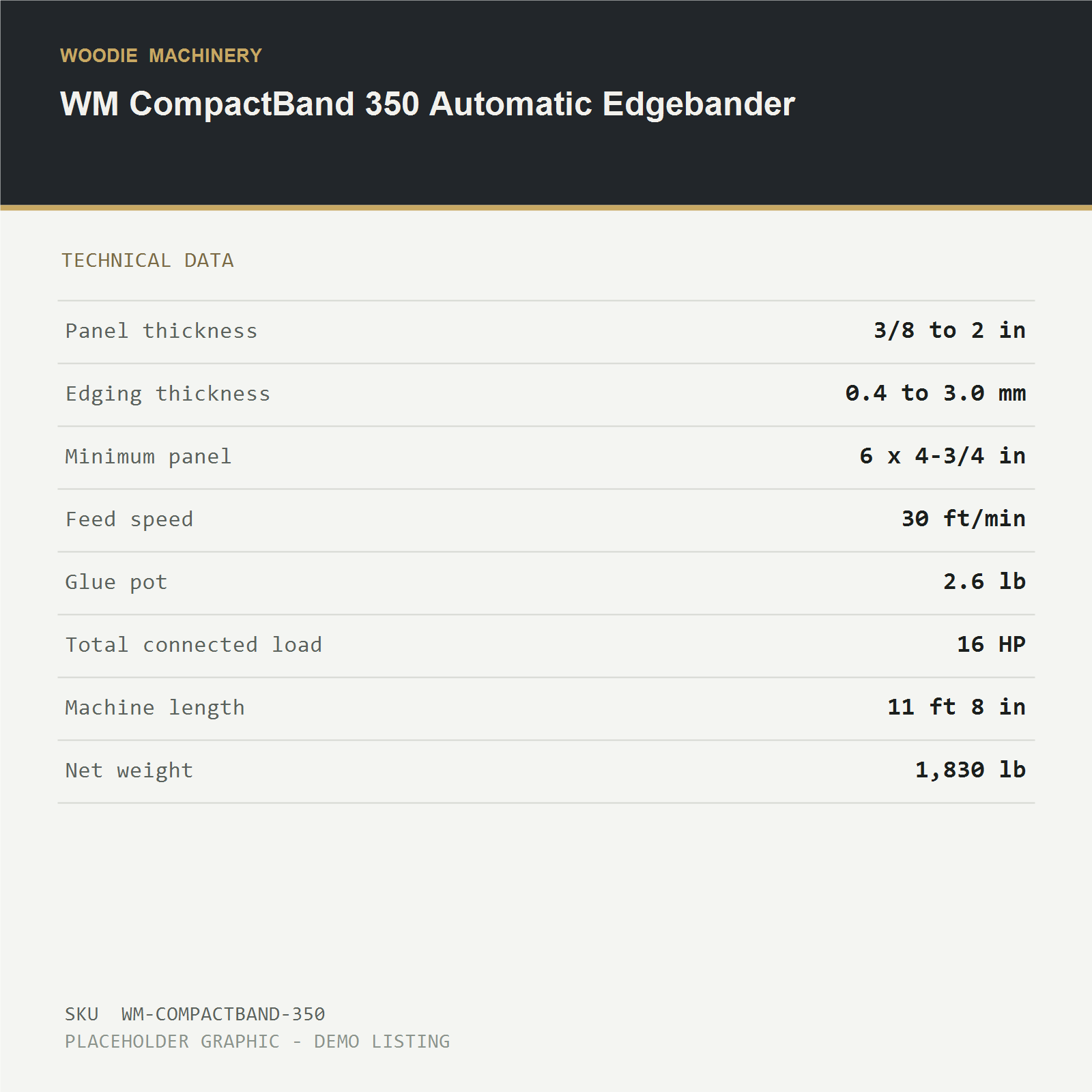

Technical specifications
- Panel thickness: 3/8 to 2 in
- Edging thickness: 0.4 to 3.0 mm
- Minimum panel size: 6 x 4-3/4 in
- Feed speed: 30 ft/min
- Glue pot capacity: 2.6 lb
- Total connected load: 16 HP
- Machine length: 11 ft 8 in
- Working height: 35-1/2 in
- Net weight: 1,830 lb
Site services required
- Electrical: 230 V 3-phase 60 Hz, 56 A
- Compressed air: 87 PSI minimum, 8 SCFM clean dry air
- Dust extraction: 3 ports, 1,060 CFM total
Supplied with
- Tooling set for 2 mm PVC and 0.6 mm melamine edging
- One 44 lb pail of EVA granulate for commissioning
- Spare pre-mill cutters and fine-trim inserts
- Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
