WM EdgeCore 500 Automatic Edgebander
$42,600.00
A heavy-duty single-sided automatic edgebander for shops running production volume in PVC, ABS, melamine, laminate and veneer. Twin corner-rounding heads and a diamond pre-milling station mean a panel enters raw and leaves with finished radius corners in one pass, with no hand trimming and no second handling.
The infrared pre-heat station is the detail that matters in an unheated workshop. Cold panel faces chill the glue line before pressure is applied, which is the usual cause of edges that lift at the corners a month after fitting. Pre-heating the panel edge removes that failure mode entirely.
Key features
- Diamond pre-milling station, twin motors with chip deflector
- Infrared panel pre-heat station for cold workshop conditions
- Front and rear glue spray stations with quick-change pot
- Twin independent corner rounding heads
- Top and bottom fine trimming with nesting kit
- Two end-trim saws with pneumatic chamfer adjustment
- Three air-pressure-controlled feed rollers
- Touchscreen recipe control with 50 program positions

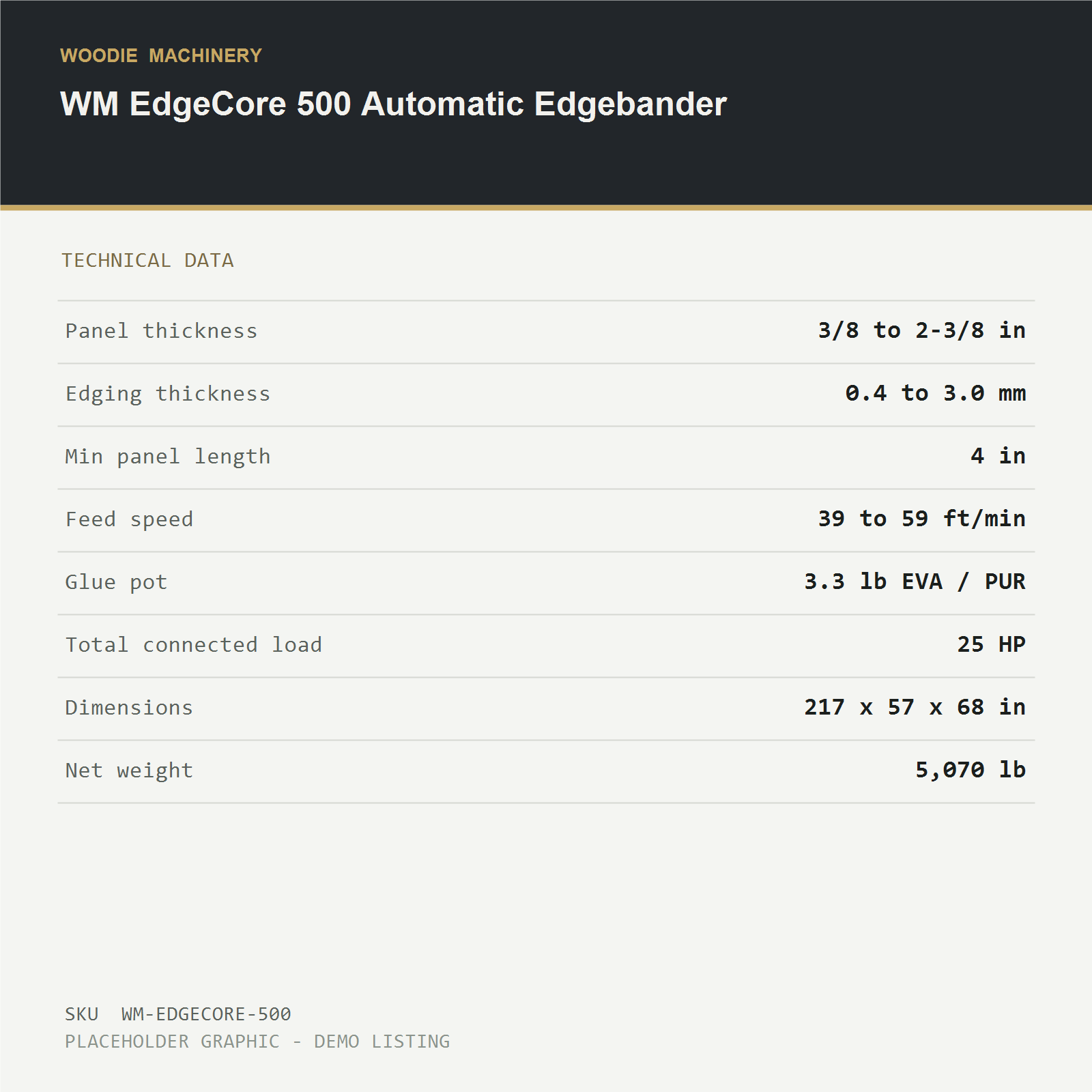

Technical specifications
- Panel thickness: 3/8 to 2-3/8 in
- Edging thickness: 0.4 to 3.0 mm coil, up to 1/2 in solid strip
- Minimum panel length: 4 in
- Feed speed: 39 to 59 ft/min, variable
- Glue pot capacity: 3.3 lb, EVA and PUR capable
- Total connected load: 25 HP
- Machine dimensions: 217 x 57 x 68 in
- Working height: 35-1/2 in
- Net weight: 5,070 lb
Site services required
- Electrical: 230 V or 460 V 3-phase 60 Hz. 70 A at 230 V, 35 A at 460 V
- Compressed air: 100 PSI minimum, 11 SCFM clean dry air
- Dust extraction: 4 ports, 1,530 CFM total
Supplied with
- Full tooling set for 2 mm PVC and 0.6 mm melamine edging
- One 44 lb pail of EVA granulate for commissioning
- Spare pre-mill cutters and fine-trim inserts
- Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
