WM VacuGrip 250 Portable Vacuum Panel Lifter
$2,780.00
A battery-powered handheld vacuum lifter for moving single sheets safely. Two 8 in cups grip the face of a panel and give the operator solid handles on an otherwise unmanageable board, which matters most with high-gloss and pre-finished sheets where gloved hands leave marks and a dropped corner writes off the sheet.
Rated at 265 lb with a 3 to 1 safety factor, it runs about six hours on a charge and warns audibly before vacuum drops to an unsafe level rather than after.
Key features
- Two 8 in suction cups on an adjustable spreader bar
- Battery powered, no hose or trailing lead
- Audible and visual low-vacuum warning before the safe limit
- Vacuum reservoir that holds the load for 30 seconds if power fails
- Cup spacing adjustable from 16 to 35 in for narrow parts
- Non-marking cup seals suitable for gloss and pre-finished faces
- Supplied in a moulded case with charger

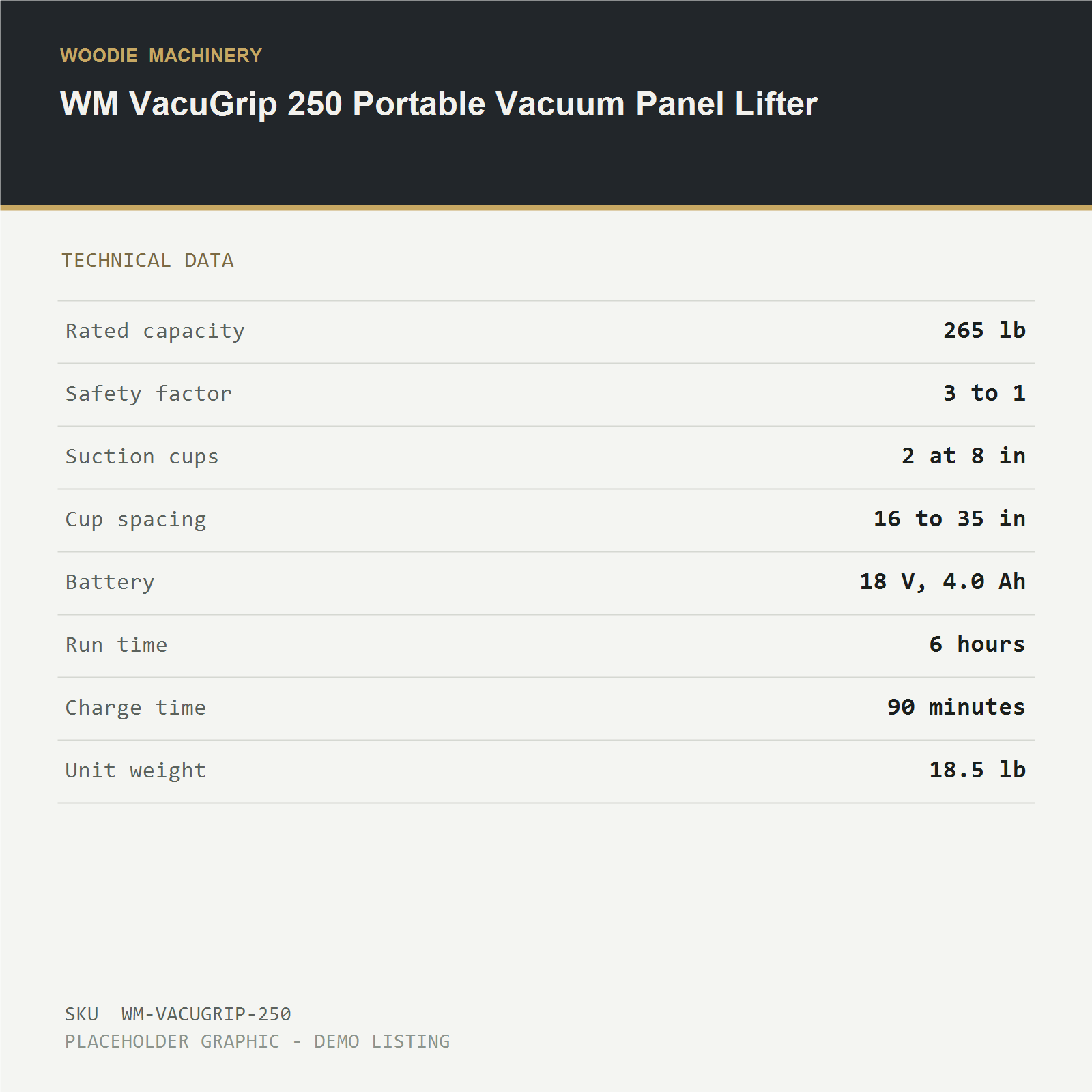

Technical specifications
- Rated capacity: 265 lb on smooth non-porous surfaces
- Safety factor: 3 to 1
- Suction cups: 2 at 8 in diameter
- Cup spacing: 16 to 35 in adjustable
- Battery: 18 V lithium ion, 4.0 Ah
- Run time: approximately 6 hours continuous
- Charge time: 90 minutes
- Unit weight: 18.5 lb
- Minimum panel thickness: 1/4 in
Site services required
- Electrical: 115 V single phase 60 Hz for battery charger only
Supplied with
- Two batteries and one fast charger
- Spare cup seal set
- Moulded carry case
- Load test certificate and operator manual
