WM AirGuard 5HP Compact Single-Bag Dust Collector
$3,290.00
A compact single-bag collector sized for one or two machines at a time, which is what most small joinery shops actually run. At 5 HP it pulls enough to serve a planer or a shaper properly rather than nearly, and the 1.2 micron felt bag keeps fine dust out of the workshop air instead of pushing it through a woven cotton bag.
Mounted on castors with an 8 in inlet and two 4 in branches, it moves to the machine being used, which for a shop with more machines than extraction is usually the practical answer.
Key features
- 1.2 micron needle-felt top filter bag, not woven cotton
- Clear lower collection bag so fill level is visible at a glance
- Twin 4 in inlet branches with individual blast gates
- Four locking castors for repositioning between machines
- Cast aluminium impeller, statically balanced
- Magnetic starter with thermal overload protection

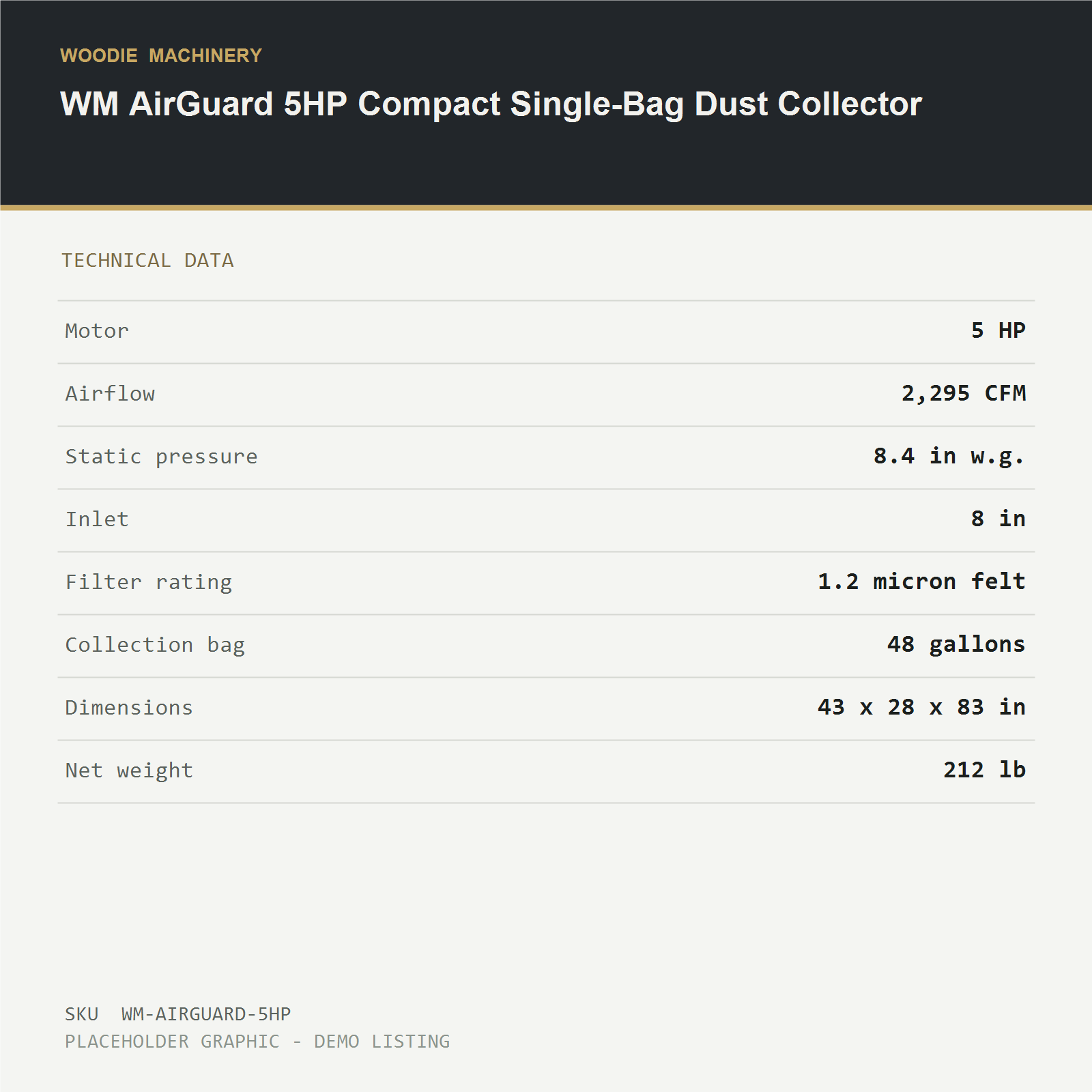

Technical specifications
- Motor: 5 HP
- Airflow: 2,295 CFM free air
- Static pressure: 8.4 in w.g.
- Inlet: 8 in, supplied with two 4 in branch adaptor
- Filter rating: 1.2 micron needle felt
- Filter bag: 20 x 39 in
- Collection bag: 20 x 35 in, approximately 48 gallons
- Noise level: 78 dBA at 10 ft
- Dimensions: 43 x 28 x 83 in
- Net weight: 212 lb
Site services required
- Electrical: 230 V 3-phase 60 Hz, 28 A, or 230 V single phase on request
- Headroom: 94 in minimum for bag changes
Supplied with
- One filter bag fitted, five spare collection bags
- Twin branch adaptor and two blast gates
- 10 ft of 4 in flexible hose and two hose clamps
- Assembly required, approximately one hour
