WM AmbientAir 3000 Overhead Air Filtration Unit

An overhead air cleaner for the dust your extraction never catches. Machine extraction removes chips at source, but sanding and cutting throw fine particulate into the room air, and that is the fraction that stays airborne for hours and ends up in the operator lungs and on wet finish. This unit hangs from the ceiling and turns the whole workshop volume over several times an hour.

In a 1,000 sq ft shop it gives roughly six air changes per hour on the high setting, which will clear visible haze after a sanding session in about ten minutes.

Key features

• Three-speed fan with 1, 2, 4 and 8 hour run-on timer
• Washable outer pre-filter plus pleated 1 micron inner filter
• Infrared remote control for speed and timer from the floor
• Chain-hang mounting from four points, ceiling brackets included
• Runs on a standard 115 V outlet, no special supply needed
• Filter service indicator on the housing

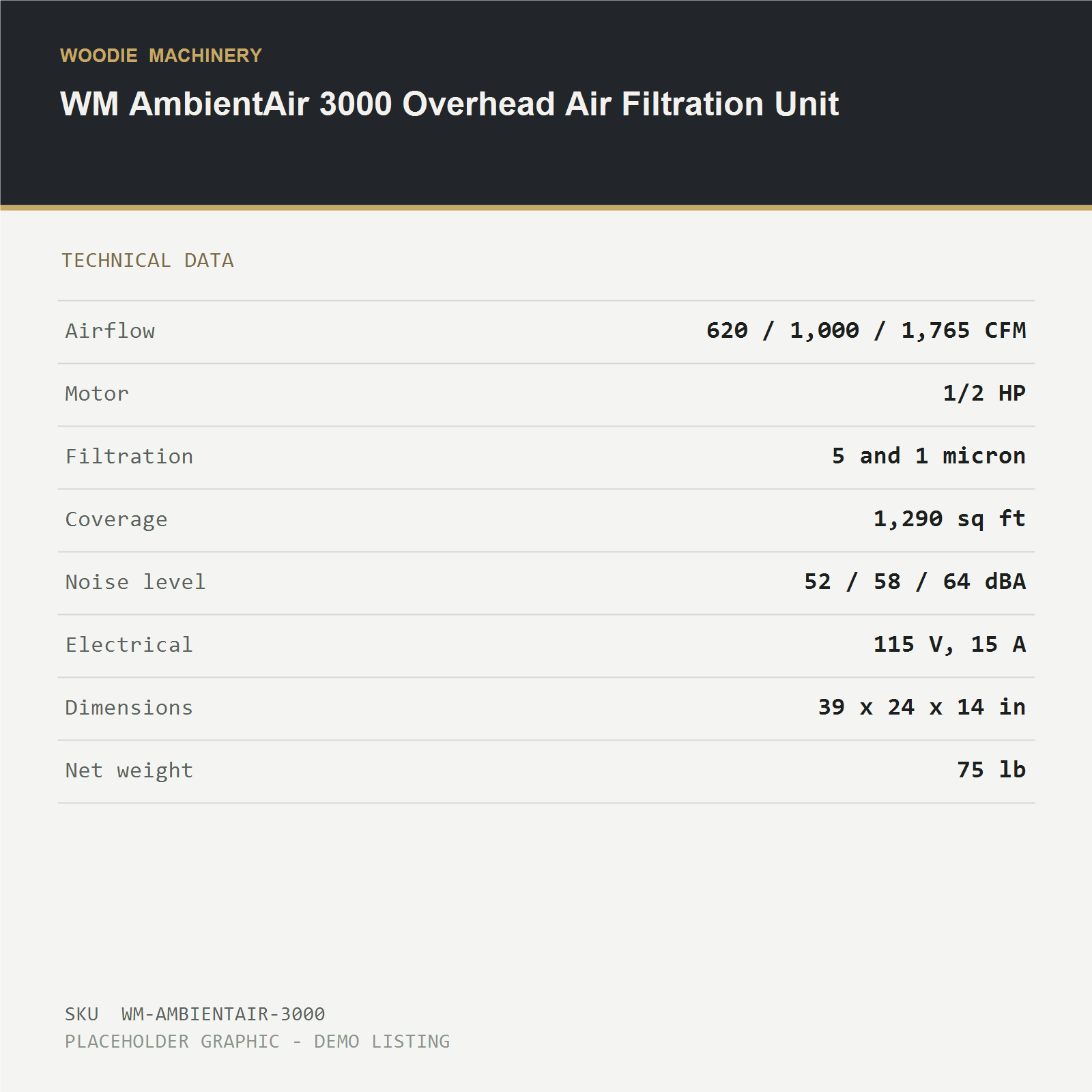

Technical specifications

• Airflow: 620 / 1,000 / 1,765 CFM, three speeds
• Motor: 1/2 HP
• Filtration: 5 micron washable pre-filter, 1 micron pleated inner
• Coverage: up to 1,290 sq ft at 6 air changes per hour
• Noise level: 52 / 58 / 64 dBA at 10 ft
• Timer: 1, 2, 4 and 8 hour settings
• Dimensions: 39 x 24 x 14 in
• Net weight: 75 lb

Site services required

• Electrical: 115 V single phase 60 Hz, 15 A, standard outlet
• Ceiling: Structural fixing points rated to 220 lb

Supplied with

• One pre-filter and one inner filter fitted, one spare inner filter
• Four hanging chains and ceiling brackets
• Infrared remote control with battery
• Self-install, approximately one hour with two people
