WM BeamSaw 3800 CNC Beam Panel Saw

A front-loading CNC beam saw for shops cutting more than about forty sheets a day, where a sliding table saw has become the bottleneck. The pressure beam clamps the full stack before the blade enters, so the bottom sheet cuts as cleanly as the top one, and the 12 ft 6 in cutting length takes full 12 ft boards without a second pass.

Cut patterns come straight off the optimiser, and the programmable rear pusher with six grippers squares and positions the stack automatically. Practically, that means the operator loads, presses cycle start, and unloads finished stacks rather than measuring anything.

Key features

• Pressure beam clamping across the full 12 ft 6 in cutting length
• 24 HP main saw with 7.5 HP scoring blade for chip-free double-sided laminate
• Programmable rear pusher with six independently clamping grippers
• Air-float working tables front and rear for one-person sheet handling
• Automatic blade projection and scoring alignment from the pattern file
• 21 in touchscreen with pattern optimiser and offcut inventory
• Barcode label printing for downstream part tracking

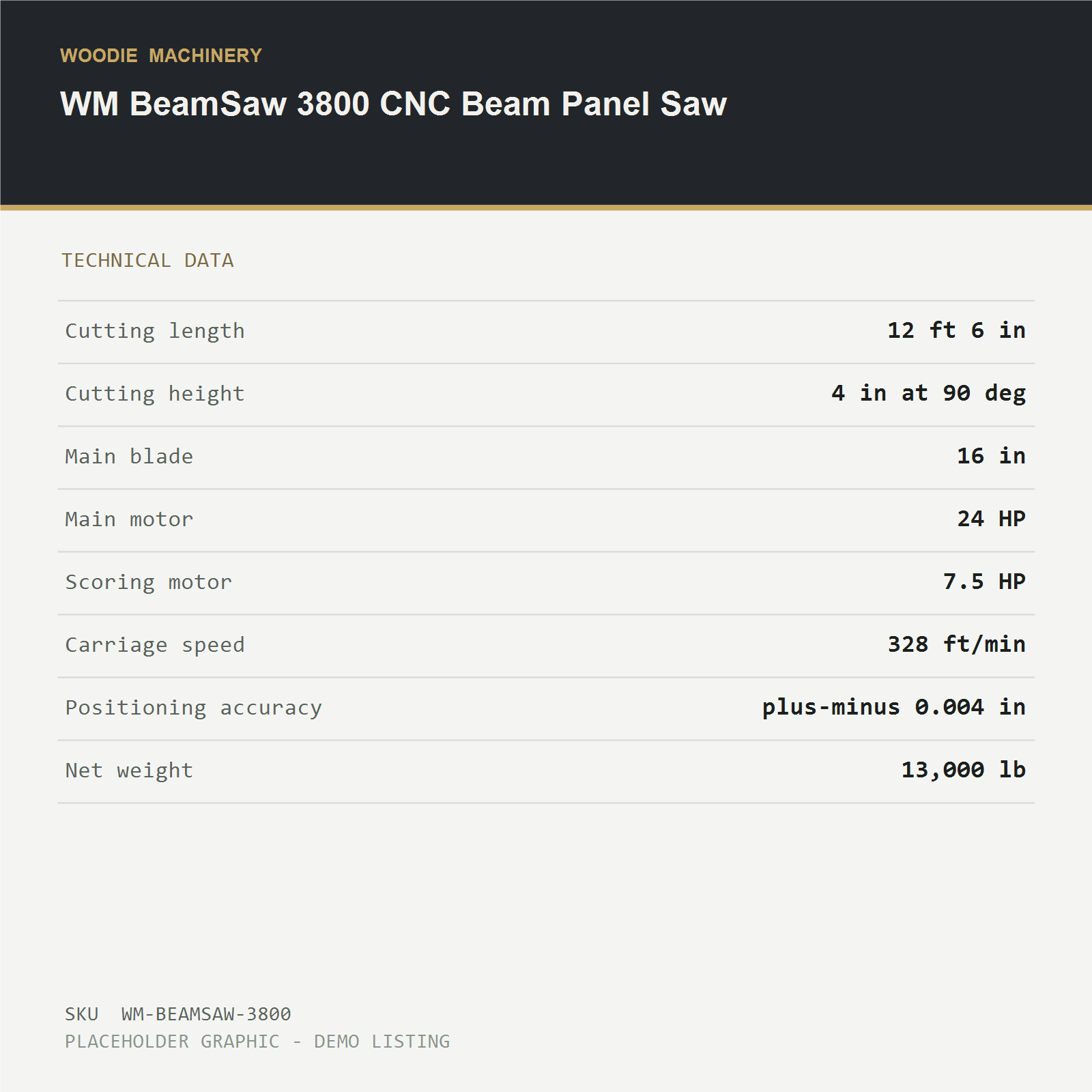

Technical specifications

• Cutting length: 12 ft 6 in
• Cutting height: 4 in at 90 degrees
• Main blade: 16 in diameter
• Scoring blade: 8 in diameter
• Main motor: 24 HP
• Scoring motor: 7.5 HP
• Carriage speed: 328 ft/min
• Pusher speed: 262 ft/min
• Positioning accuracy: plus or minus 0.004 in
• Footprint: 283 x 252 x 79 in
• Net weight: 13,000 lb

Site services required

• Electrical: 230 V or 460 V 3-phase 60 Hz. 110 A at 230 V, 55 A at 460 V
• Compressed air: 115 PSI minimum, 18 SCFM clean dry air
• Dust extraction: 2 ports, 2,470 CFM total
• Floor: Level concrete, 6 in minimum slab

Supplied with

• One main blade and one scoring blade fitted, one spare set
• Optimising software licence, single seat
• Label printer and one roll of thermal labels
• Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
