WM BriquettePress BP200 Wood Waste Briquetting Press

A briquetting press that compresses dust and shavings into dense fuel logs, turning a disposal cost into either heating fuel or a saleable product. Waste comes in from the extraction system and leaves as briquettes at roughly one tenth the volume, which for most shops means dumpster pickups drop from weekly to monthly.

No binder is used. The press works purely on pressure, and the lignin already in the timber does the bonding, so the briquettes are clean enough to burn in a domestic stove or sell to customers who do.

Key features

• Hydraulic ram press, no binder or additive required
• Direct feed from extraction system or manual hopper loading
• Volume reduction of approximately 10 to 1
• Automatic operation with material level sensing in the hopper
• Adjustable briquette length from 1-1/2 to 4-3/4 in
• Overload protection with automatic reverse on jam detection
• Sealed hydraulic system with oil temperature monitoring

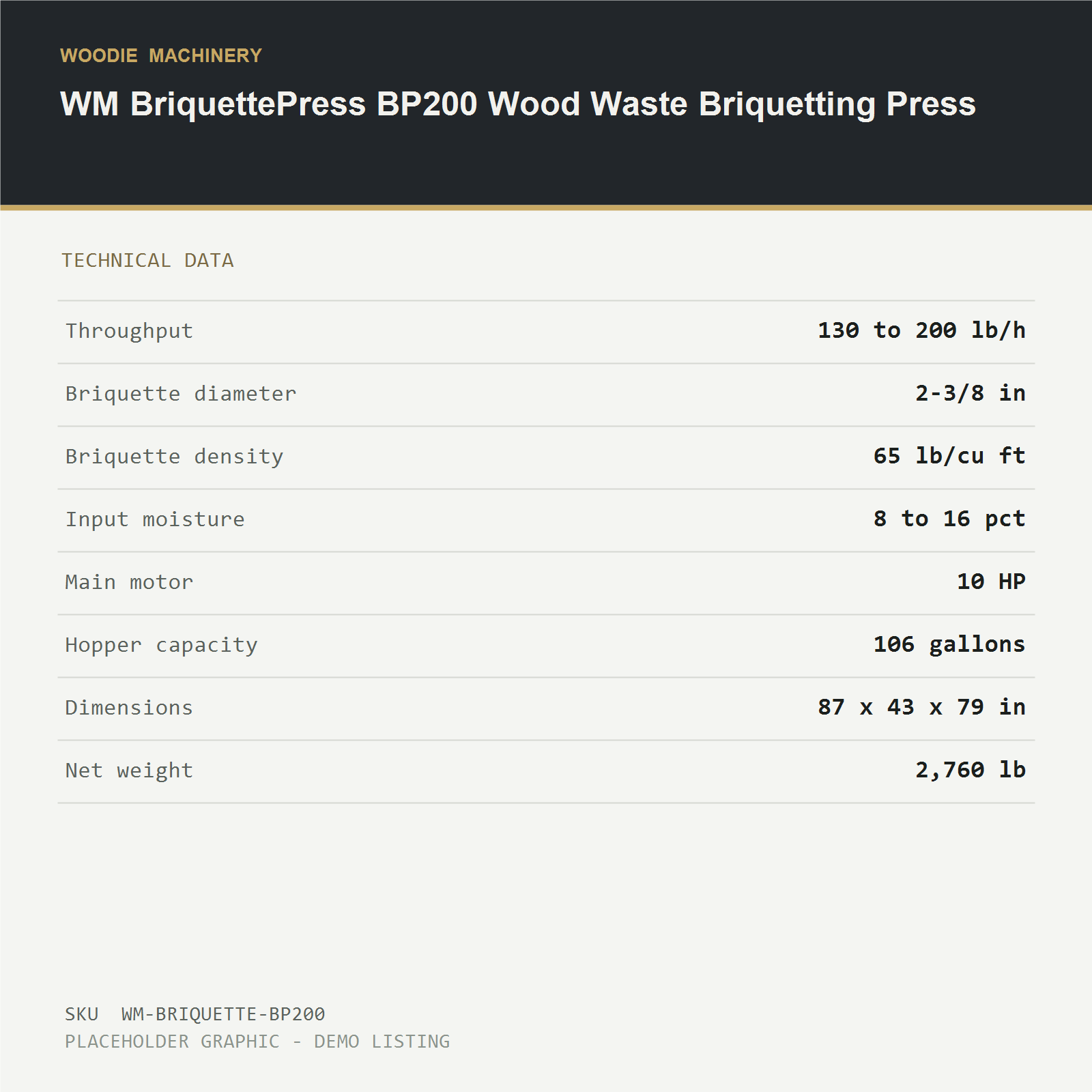

Technical specifications

• Throughput: 130 to 200 lb/h depending on material and moisture
• Briquette diameter: 2-3/8 in
• Briquette length: 1-1/2 to 4-3/4 in, adjustable
• Briquette density: approximately 65 lb/cu ft
• Input moisture: 8 to 16 percent optimal, 20 percent maximum
• Input particle size: up to 1-1/4 in
• Main motor: 10 HP hydraulic power pack
• Hopper capacity: 106 gallons
• Dimensions: 87 x 43 x 79 in
• Net weight: 2,760 lb

Site services required

• Electrical: 230 V 3-phase 60 Hz, 44 A
• Floor: Level concrete, machine must be bolted down
• Clearance: 32 in to the rear for hydraulic servicing

Supplied with

• 106 gallon hopper with level sensor
• Briquette collection chute and one collection crate
• First fill of hydraulic oil
• Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
