WM BrushTech 300 Brush Sander

A brush sander for contoured and profiled work where an abrasive belt would flatten the detail. Rotating abrasive-filament brushes follow the shape of a raised panel door, a moulded edge or a routed profile, sanding into the recesses rather than across them.

It also does a job no belt sander can: after staining, the raised grain in profiles needs knocking back without cutting through the colour, and a brush head does that evenly across a shaped surface where hand sanding leaves light and dark patches.

Key features

• Twin counter-rotating brush heads for even finish in both grain directions
• Abrasive filament brushes that conform to profiles and mouldings
• Independent height adjustment per head with digital readout
• Variable brush and feed speeds set independently
• Powered conveyor bed with vacuum hold-down for light parts
• Suitable for denibbing between finish coats as well as raw timber

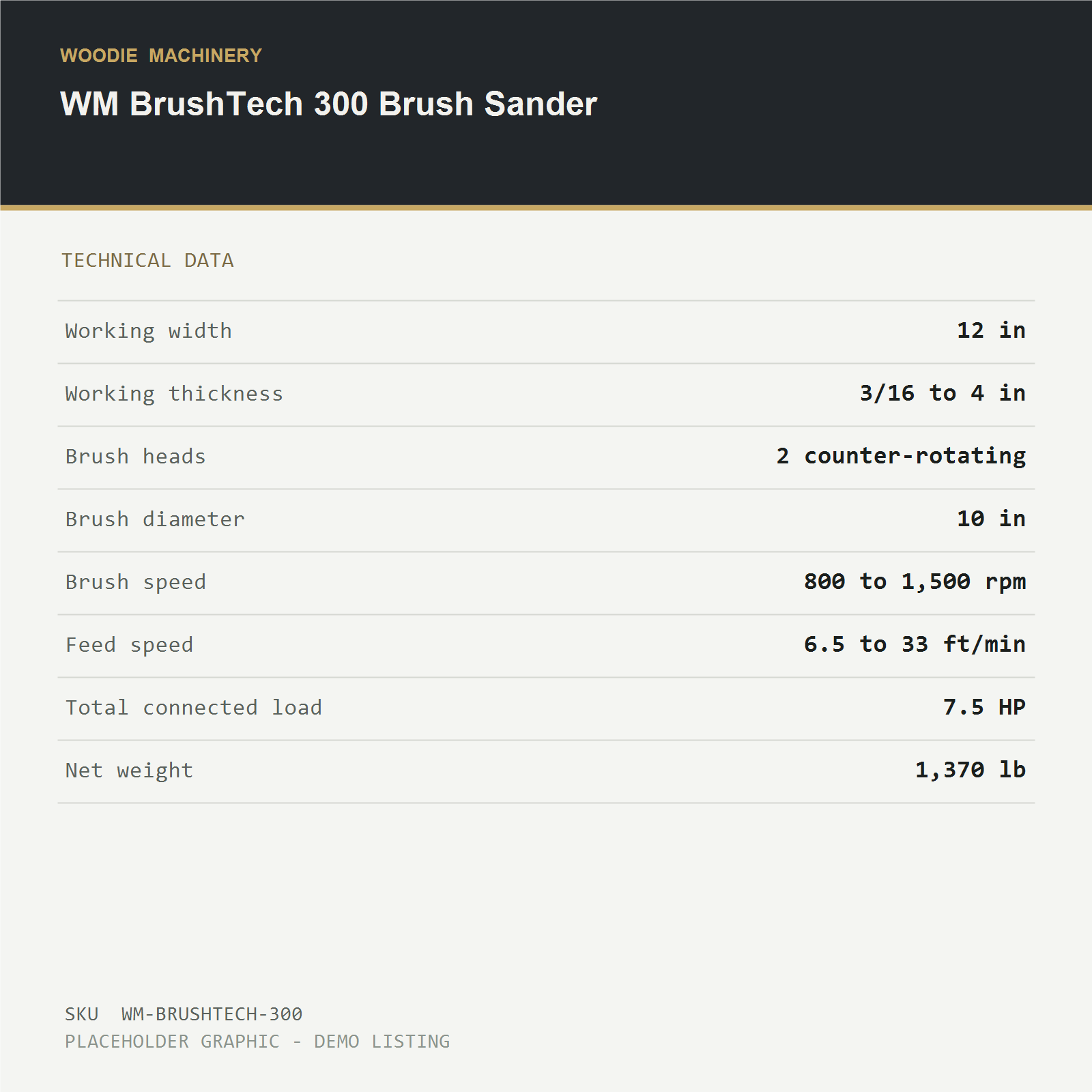

Technical specifications

• Working width: 12 in
• Working thickness: 3/16 to 4 in
• Minimum workpiece length: 10 in
• Brush heads: 2 counter-rotating
• Brush diameter: 10 in
• Brush speed: 800 to 1,500 rpm variable
• Feed speed: 6.5 to 33 ft/min variable
• Total connected load: 7.5 HP
• Footprint: 59 x 43 x 63 in
• Net weight: 1,370 lb

Site services required

• Electrical: 230 V 3-phase 60 Hz, 28 A
• Compressed air: 87 PSI minimum, 3 SCFM for vacuum hold-down
• Dust extraction: two 5 in ports, 940 CFM total

Supplied with

• Two brush heads fitted with 180 grit filament
• One spare set of brushes in 240 grit
• Setting gauge and infeed support table
• Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
