WM CraneVac 3000 Battery-Powered Crane Vacuum Lifter

A self-contained battery-powered crane vacuum lifter for handling full sheets and heavy panel stock without a forklift and without a second pair of hands. It hangs from an existing gantry, jib or overhead crane, grips the panel face, and lets one operator place a 440 lb board precisely onto a saw table.

Two independent vacuum circuits each carry the full rated load on their own. That is not a marketing line: it means a hose failure or a seal breach on one circuit leaves the load still held by a circuit rated to hold it alone, which is the specification difference between this and single-circuit imported lifters at a similar price.

Key features

• Two fully independent vacuum circuits, each rated to hold the full load alone
• Dual batteries for extended run time and hot-swap changeover
• Multiple lifting eyes for crane, jib or gantry mounting
• Integrated set-down legs that protect the pads between lifts
• Audible and visual low-vacuum alarm ahead of the safe limit
• Vacuum reservoir holds the load if power is interrupted
• Non-marking pad seals suitable for pre-finished and gloss faces

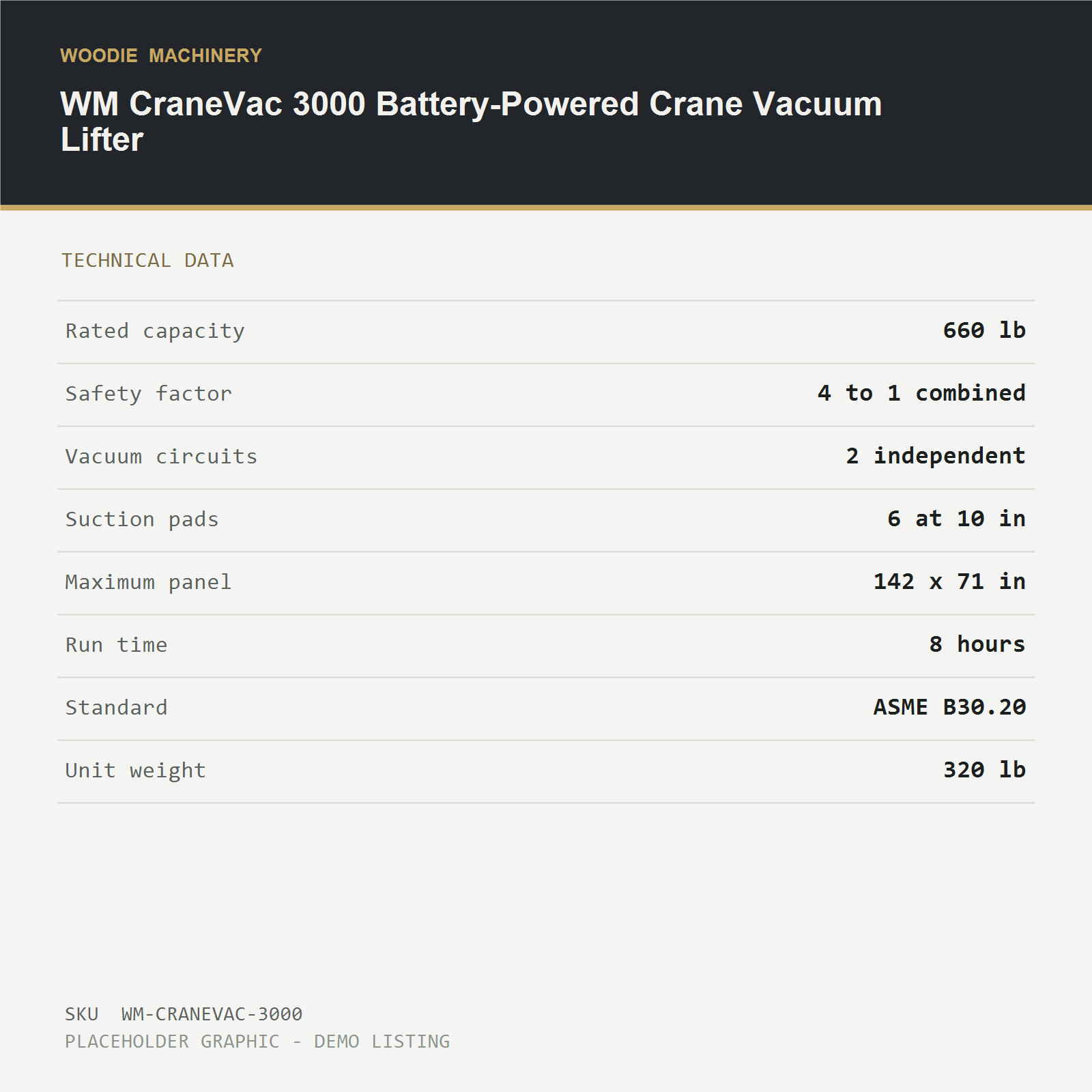

Technical specifications

• Rated capacity: 660 lb on smooth non-porous surfaces
• Safety factor: 2 to 1 per circuit, 4 to 1 combined
• Vacuum circuits: 2 independent, each full-load rated
• Suction pads: 6 at 10 in diameter
• Maximum panel size: 142 x 71 in
• Battery: 2 at 12 V sealed lead acid
• Run time: approximately 8 hours continuous
• Unit weight: 320 lb
• Standards: Tested to ASME B30.20-2010

Site services required

• Lifting equipment: Crane, jib or gantry rated to 1,100 lb minimum
• Electrical: 115 V single phase 60 Hz for the battery charger only
• Headroom: 32 in minimum above the panel stack

Supplied with

• Two batteries and one charger
• Spare pad seal set
• Load test certificate and lifting register entry documentation
• Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
