WM CycloClean 7500 Cyclone Dust Collector

A cyclone dust collector with cartridge filtration, for shops that want clean return air rather than a bag house that leaks fines back into the workshop. The cyclone drops around 99 percent of the load into a sealed 53 gallon bin before the air reaches the filters, so the cartridges stay clean, airflow stays constant, and filter life runs into years rather than months.

The reverse-pulse cleaning system fires compressed air back through the cartridges on a timer, which means the machine holds its rated airflow through a full shift instead of tapering off as the filters load.

Key features

• High-efficiency cyclone separation ahead of the filter stage
• Four pleated cartridge filters, MERV 15, 99.9 percent at 0.5 micron
• Automatic reverse-pulse filter cleaning on adjustable timer
• Sealed 53 gallon collection bin on castors with quick-release clamp
• Filter differential pressure gauge with service indicator
• Clean air returned to the workshop, no external venting required
• Powder-coated steel body with acoustic lining

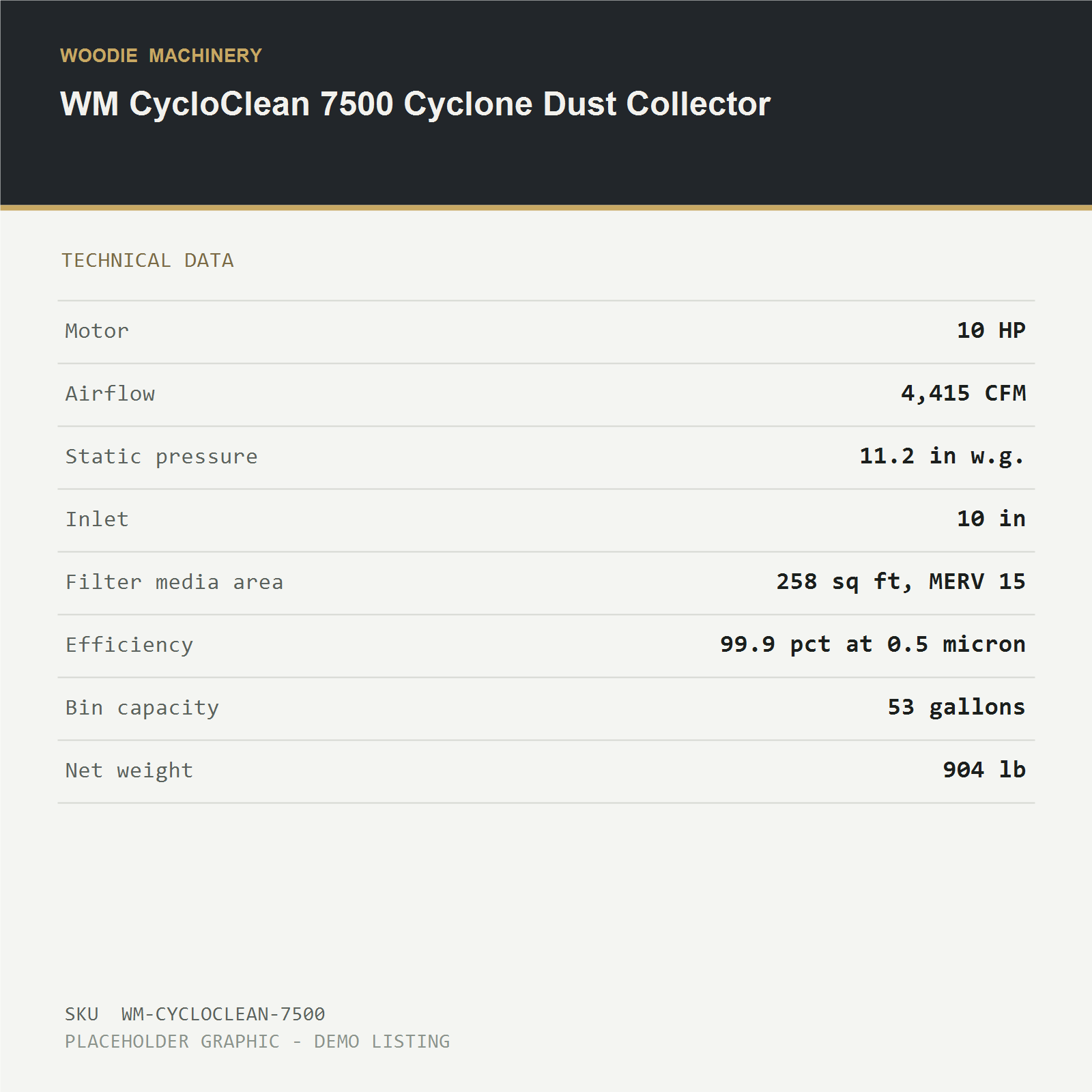

Technical specifications

• Motor: 10 HP
• Airflow: 4,415 CFM free air
• Static pressure: 11.2 in w.g.
• Inlet: 10 in, adaptable to four 5 in
• Filtration: 4 cartridges, 258 sq ft total media area
• Filter efficiency: 99.9 percent at 0.5 micron
• Bin capacity: 53 gallons
• Noise level: 74 dBA at 10 ft
• Dimensions: 55 x 43 x 114 in
• Net weight: 904 lb

Site services required

• Electrical: 230 V or 460 V 3-phase 60 Hz. 35 A at 230 V, 18 A at 460 V
• Compressed air: 87 PSI minimum, 1.4 SCFM for filter pulse cleaning
• Headroom: 10 ft 6 in minimum for filter servicing

Supplied with

• Four cartridge filters fitted, one spare
• 53 gallon bin, inlet adaptor and blast gate
• Differential pressure gauge and pulse timer preset
• Self-install with phone commissioning support
