WM LacquerSand 1000 Single and Twin Belt Lacquer Sander
$25,520.00
A wide belt sander configured specifically for denibbing and flatting cured lacquer and paint between coats. Finish sanding is not timber sanding: the platen pressure is far lower, the belt speed is slower, and the drum is rubber-faced rather than steel, because the aim is to shear off nibs and orange peel without cutting through to the substrate.
Running twin belts lets a shop take a sealer coat flat in one pass at 240 grit and follow immediately at 320 or 400, which is how a hand-rubbed finish gets produced on a production schedule.
Key features
- Rubber-faced contact drum with segmented electronic platen
- Low-pressure platen calibrated for cured lacquer and paint films
- Twin belt configuration for two-grit sequencing in one pass
- Variable belt speed down to 1,180 SFPM for heat-sensitive finishes
- Motorised table height with digital readout to 0.004 in
- Anti-static brush bar and blow-off before the outfeed
- Belt oscillation with automatic tracking correction

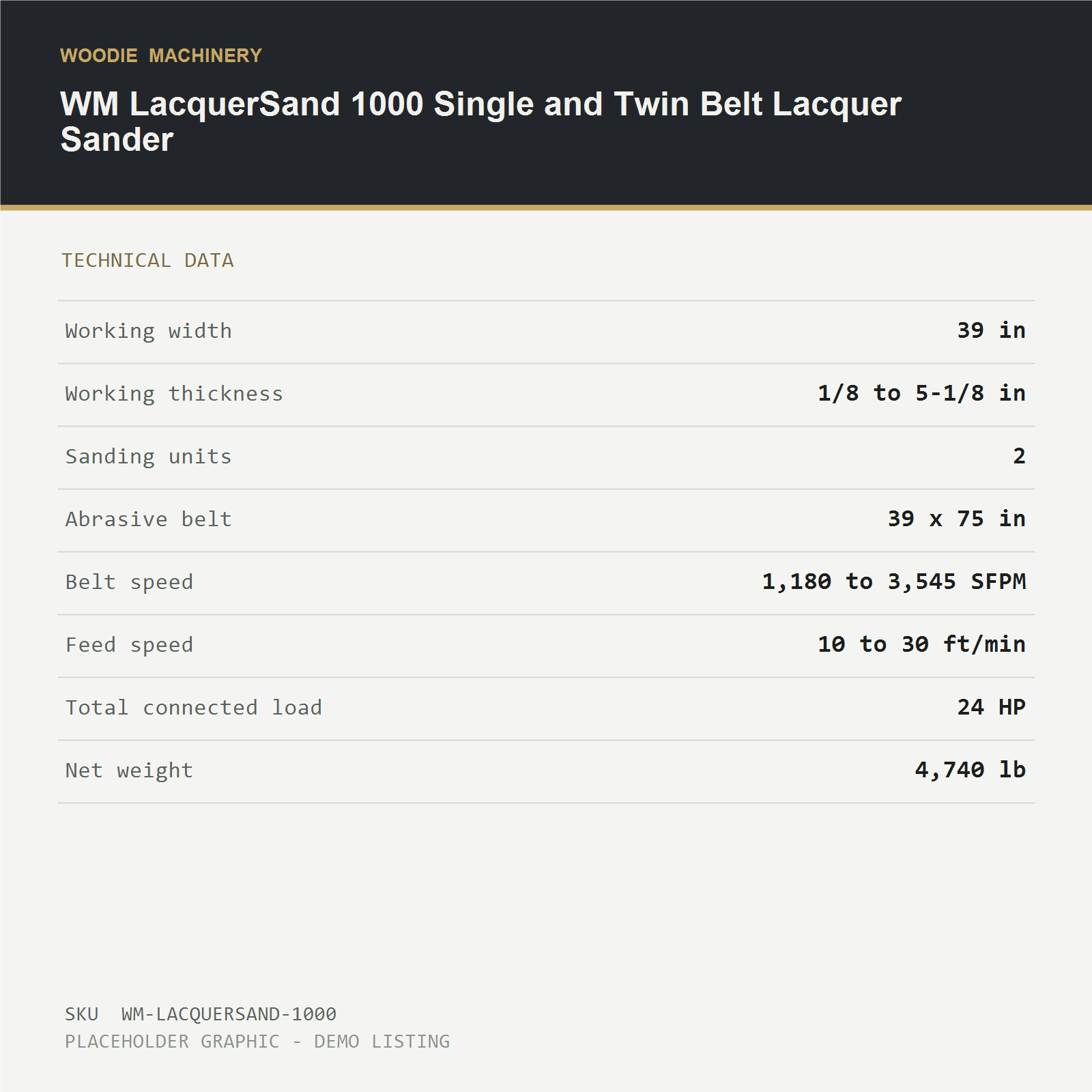

Technical specifications
- Working width: 39 in
- Working thickness: 1/8 to 5-1/8 in
- Minimum workpiece length: 16 in
- Sanding units: 2, drum plus platen or twin platen
- Abrasive belt size: 39 x 75 in
- Belt speed: 1,180 to 3,545 SFPM variable
- Feed speed: 10 to 30 ft/min variable
- Total connected load: 24 HP
- Footprint: 83 x 75 x 79 in
- Net weight: 4,740 lb
Site services required
- Electrical: 230 V or 460 V 3-phase 60 Hz. 70 A at 230 V, 35 A at 460 V
- Compressed air: 87 PSI minimum, 7 SCFM clean dry air
- Dust extraction: two 6 in ports, 2,120 CFM total
Supplied with
- Three abrasive belts in 240, 320 and 400 grit
- Spare rubber platen facing and graphite cloth
- Belt tracking calibration tool
- Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
