WM MultiBag 15HP Three-Phase Dust Collector
$4,830.00
An industrial multi-bag dust collector sized to run several machines off one extraction point rather than one machine at a time. At 15 HP with a 30 in impeller it will hold duct velocity across a branched system serving a panel saw, an edgebander and a planer simultaneously, which is where smaller single-bag units run out of static pressure and start dropping chip in the ductwork.
Twenty-four filter bags give a large media area, so face velocity stays low and the unit holds its airflow through a shift instead of choking as the bags load. Two 25 in collection bags mean emptying happens at shift end rather than mid-job.
Key features
- 30 in statically balanced impeller with abrasion-resistant liner
- Twenty-four needle-felt filter bags, large media area for low face velocity
- Two 25 in collection bags with quick-release clamp bands
- Manual shaker bar for filter cleaning at shift end
- 14 in inlet, adaptable to branched ducting
- Bolt-together galvanized frame for through-door installation
- Magnetic starter with phase failure and thermal overload protection

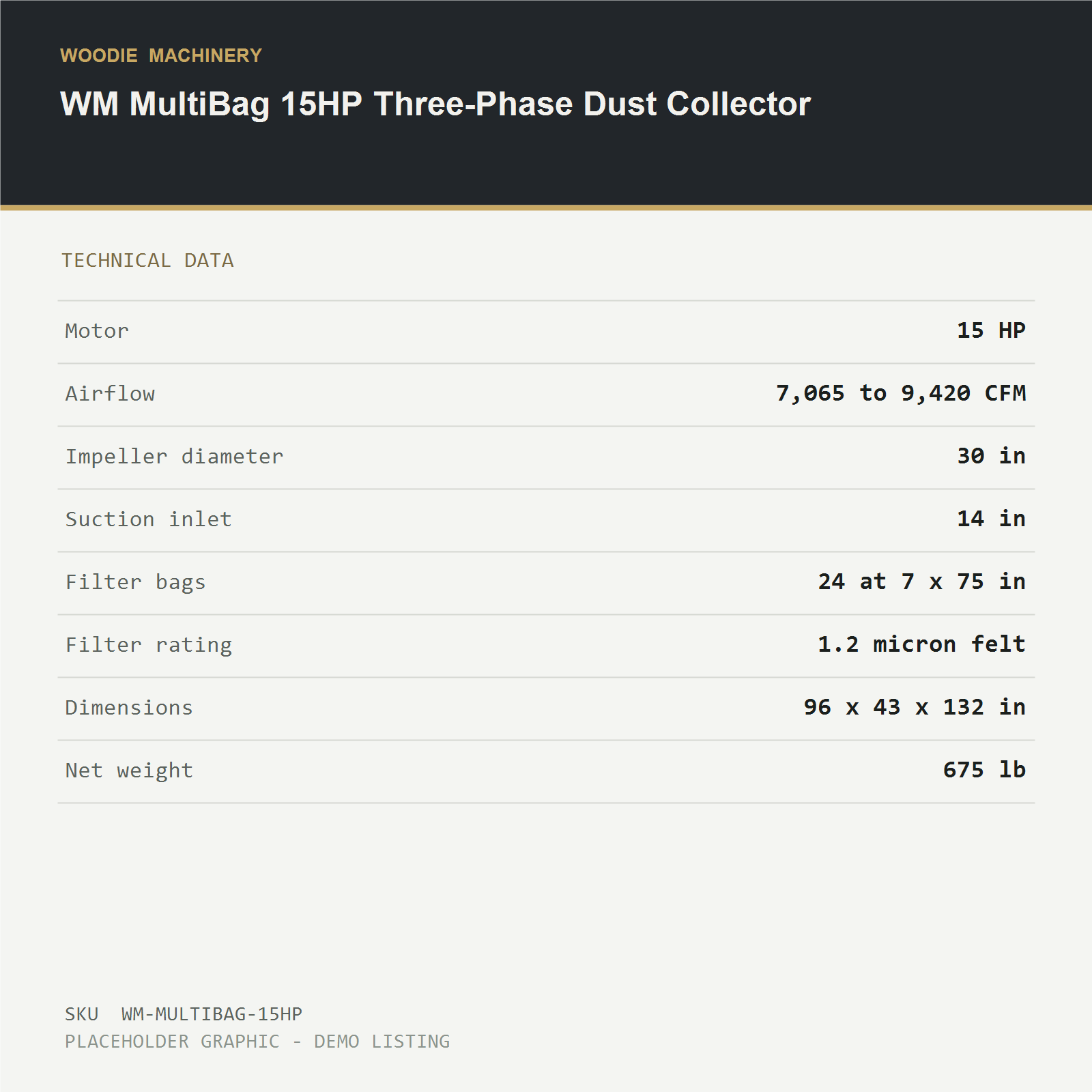

Technical specifications
- Motor: 15 HP
- Airflow: 7,065 to 9,420 CFM
- Fan speed: 5,900 to 8,860 ft/min
- Impeller diameter: 30 in
- Suction inlet: 14 in
- Filter bags: 24 at 7 x 75 in
- Collection bags: 2 at 25 x 37 in
- Filter rating: 1.2 micron needle felt
- Dimensions: 96 x 43 x 132 in
- Net weight: 675 lb
Site services required
- Electrical: 230 V or 460 V 3-phase 60 Hz. 56 A at 230 V, 28 A at 460 V
- Headroom: 11 ft 10 in minimum for bag servicing
- Siting: Suitable for indoor or covered outdoor installation
Supplied with
- Twenty-four filter bags fitted, four spare
- Two collection bags plus ten spare collection bags
- Inlet adaptor and manual shaker bar
- Assembly required, approximately four hours with two people
