WM OptiCross 650 Automatic Up-Cut Crosscut Saw

An automatic up-cut crosscut saw for docking solid timber to length in volume, and the machine that turns defecting from a marking-and-cutting job into a single operation. The blade rises through the table from below, so the workpiece is supported right up to the cut line and the offcut cannot kick back.

Fed from a roller table with a programmable stop, it will run a cutting list of mixed lengths automatically, advancing the stop between cuts. On a furniture or stair shop docking rail and stile stock all day, it removes almost all of the measuring.

Key features

• Up-cut blade action with full workpiece support at the cut line
• Pneumatic top and side clamping before each cut
• Programmable length stop with 200 position cutting-list memory
• Blade fully enclosed below the table between cuts
• Two-hand cycle initiation with light curtain on the operator side
• Optional defect-marking crayon reader for automatic optimising

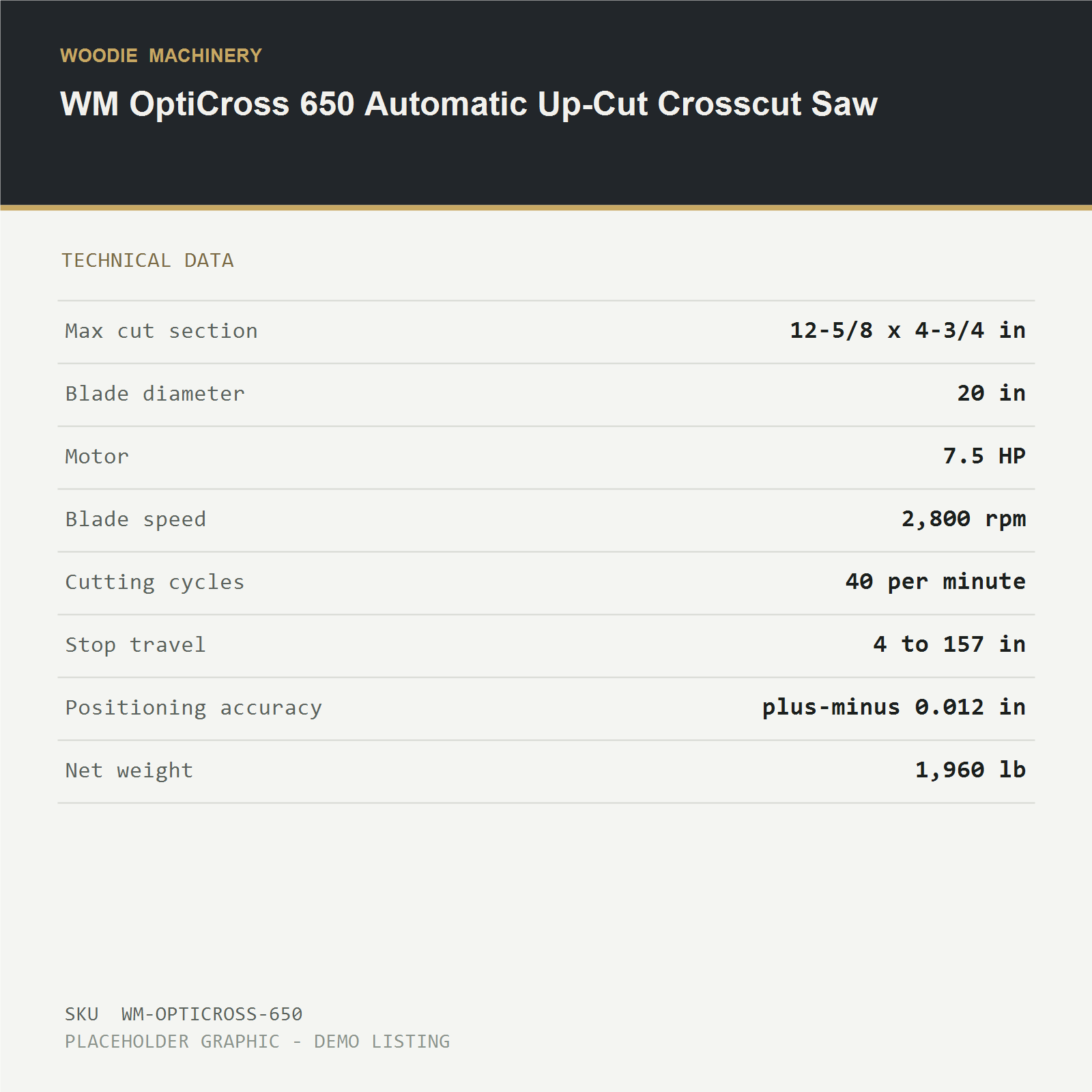

Technical specifications

• Maximum cut section: 12-5/8 x 4-3/4 in
• Blade diameter: 20 in
• Motor: 7.5 HP
• Blade speed: 2,800 rpm
• Cutting cycles: up to 40 per minute
• Stop travel: 4 to 157 in
• Positioning accuracy: plus or minus 0.012 in
• Footprint: 55 x 43 x 63 in plus roller tables
• Net weight: 1,960 lb

Site services required

• Electrical: 230 V 3-phase 60 Hz, 35 A
• Compressed air: 100 PSI minimum, 6 SCFM
• Dust extraction: one 6 in port, 825 CFM minimum

Supplied with

• One 20 in crosscut blade fitted, one spare
• Programmable stop and 10 ft infeed roller table
• Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
