WM PanelLift PL500 Hydraulic Scissor Lift Table
$7,450.00
A hydraulic scissor lift table that keeps a stack of panels at comfortable working height as it is worked down. The operator sets the top of the stack at waist level and the table rises as sheets come off, so nobody is bending to lift a 90 lb sheet off the floor at the end of a pallet. It is the least glamorous machine in a workshop and usually the one that saves the most backs.
Rated at 2,200 lb, it takes a full pallet of 3/4 in board. Foot-pedal control on both long sides means the operator adjusts height without letting go of the panel.
Key features
- 2,200 lb capacity, sized for a full pallet of sheet material
- Foot-pedal raise and lower on both long sides
- Self-leveling option that holds the stack top at a set height as it is worked down
- Safety skirt around the scissor mechanism to prevent foot entrapment
- Hydraulic velocity fuse that arrests descent on hose failure
- Four locking castors or fixed feet, selectable at install

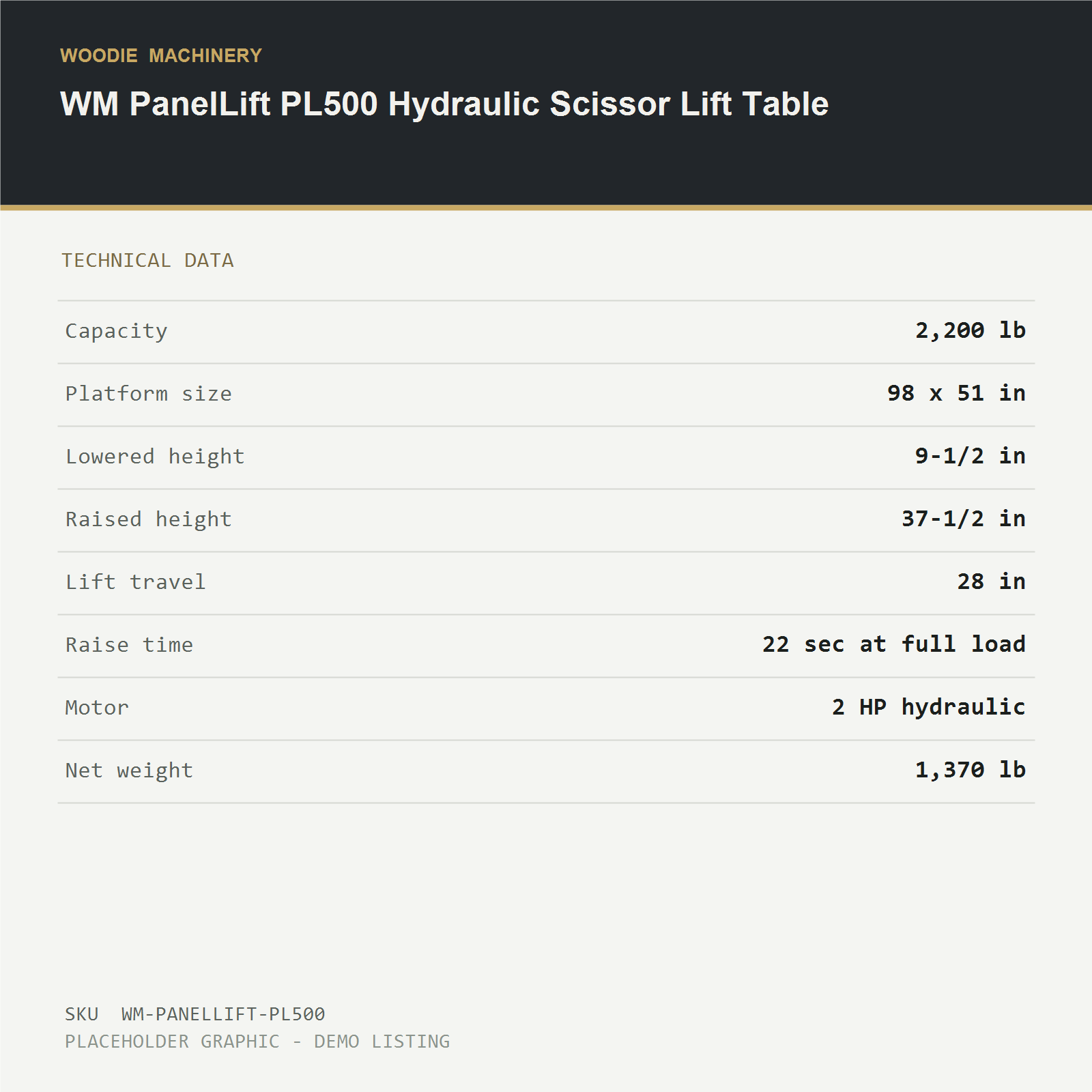

Technical specifications
- Capacity: 2,200 lb evenly distributed
- Platform size: 98 x 51 in
- Lowered height: 9-1/2 in
- Raised height: 37-1/2 in
- Lift travel: 28 in
- Raise time: 22 seconds at full load
- Motor: 2 HP hydraulic power pack
- Net weight: 1,370 lb
Site services required
- Electrical: 230 V 3-phase 60 Hz, 17 A, or 240 V single phase on request
- Floor: Level concrete
Supplied with
- Foot-pedal controls both sides
- Safety skirt and velocity fuse fitted
- Castor set and fixed foot set, both supplied
- Load test certificate
