WM PlanerSand 700 Single and Twin Belt Planer Sander
$25,630.00
A planer sander that dimensions and finishes in a single pass, replacing the planer-then-sander sequence on solid timber and edge-glued panel work. The first head takes the heavy cut like a planer, the second sands to a finish-ready surface, so stock leaves the machine at thickness and ready for lacquer rather than needing a second trip through a separate sander.
For a shop making countertops, stair treads or edge-glued panels, this collapses two operations and two handling cycles into one, and removes the planer snipe that otherwise has to be sanded out by hand at both ends of every board.
Key features
- Steel contact drum for calibration followed by platen for finishing
- Removes up to 1/8 in in a single pass on hardwood
- Segmented electronic platen with 1-3/16 in segment resolution
- Motorised table height with digital readout to 0.004 in
- Powered infeed and outfeed rollers with sectional hold-down
- Belt oscillation with automatic tracking correction
- Amperage load display so the operator can see cut depth against motor load

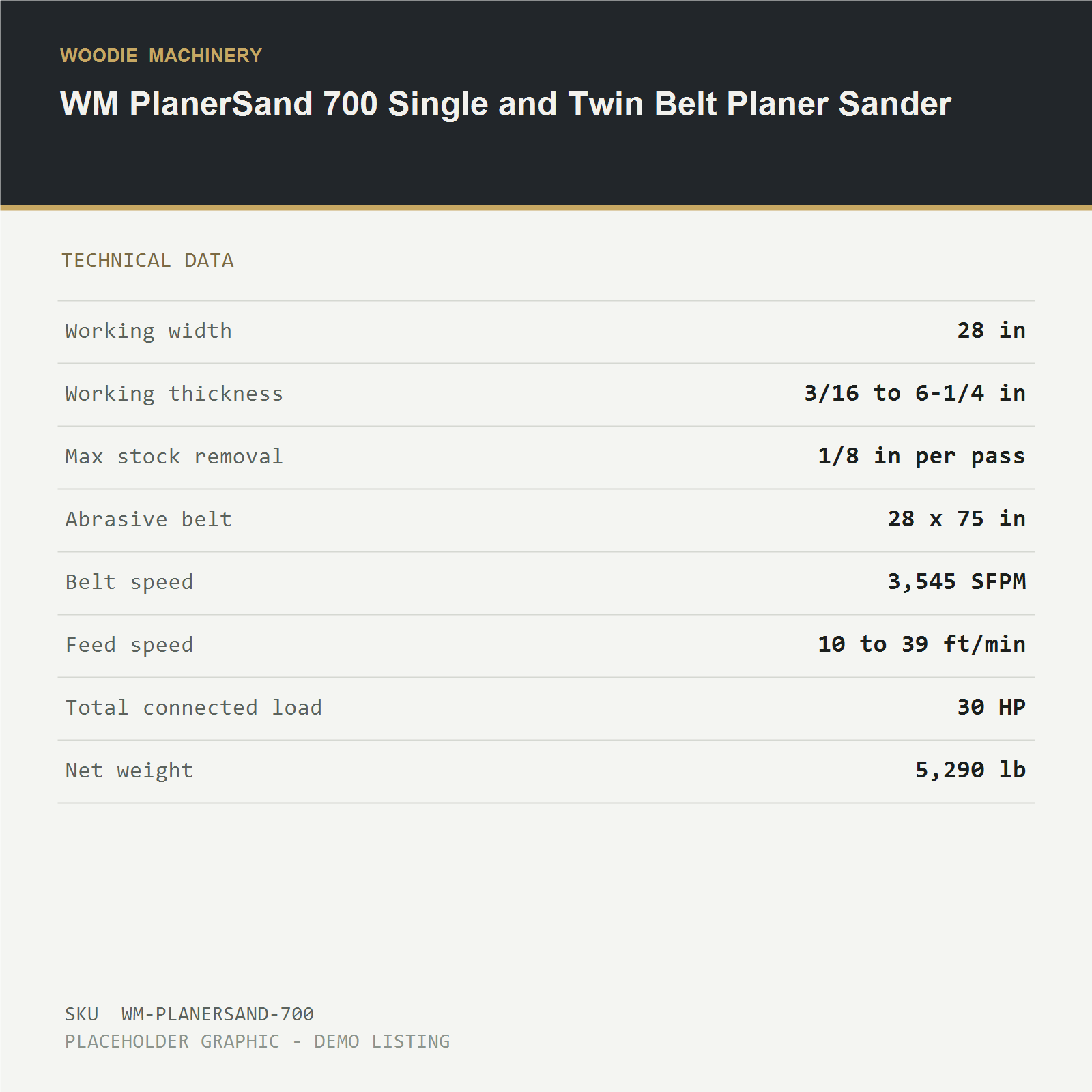

Technical specifications
- Working width: 28 in
- Working thickness: 3/16 to 6-1/4 in
- Minimum workpiece length: 14 in
- Maximum stock removal: 1/8 in per pass
- Sanding units: 2, drum plus platen
- Abrasive belt size: 28 x 75 in
- Belt speed: 3,545 SFPM
- Feed speed: 10 to 39 ft/min variable
- Total connected load: 30 HP
- Footprint: 71 x 67 x 79 in
- Net weight: 5,290 lb
Site services required
- Electrical: 230 V or 460 V 3-phase 60 Hz. 87 A at 230 V, 44 A at 460 V
- Compressed air: 87 PSI minimum, 7 SCFM clean dry air
- Dust extraction: two 6 in ports, 2,120 CFM total
Supplied with
- Three abrasive belts in 80, 120 and 180 grit
- Spare platen graphite cloth
- Calibration test block and belt tracking tool
- Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
