WM WideBelt 1300 Single and Twin Belt Sander

A 51 in wide belt sander for calibrating and finishing panels, doors and edge-glued boards. Full 4 ft sheet width in a single pass means no overlap marks down the middle of a panel, which is the flaw that shows up under gloss lacquer on anything sanded in two bites on a narrower machine.

The twin-belt configuration takes a panel from calibration to finish-ready in one pass: the first head with a steel contact drum removes stock and flattens, the second with a segmented platen refines to final grit. For a shop laminating its own panels or making solid timber doors, that is a whole operation and a whole handling cycle removed.

Key features

• 51 in working width, full 4 ft panel in one pass
• Steel contact drum for calibration plus segmented platen for finishing
• Electronic platen with 1-3/16 in segment resolution
• Motorised table height with digital readout to 0.004 in
• Belt oscillation with automatic tracking correction
• Amperage load display so cut depth can be judged against motor load
• Sectional powered hold-down rollers for short and narrow parts

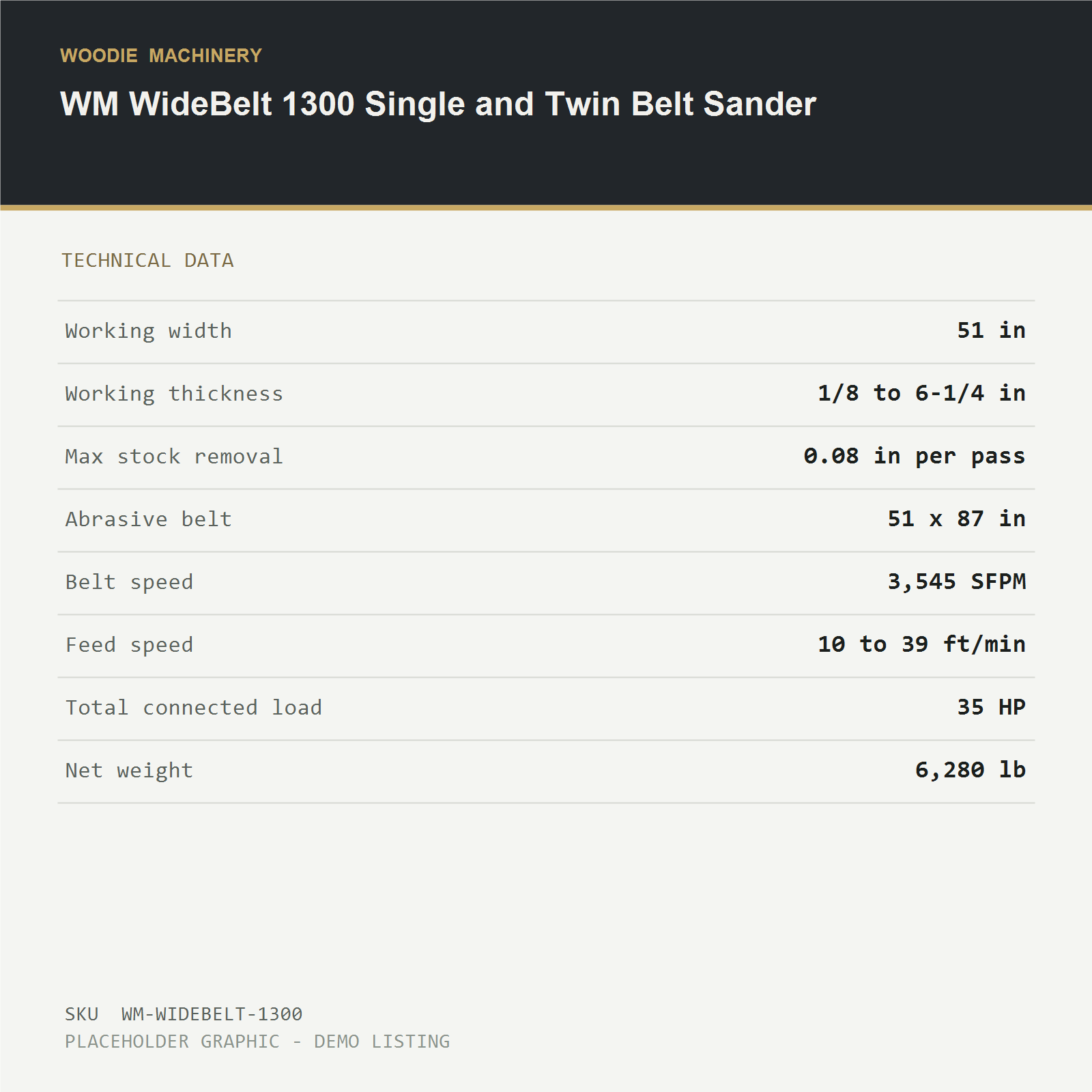

Technical specifications

• Working width: 51 in
• Working thickness: 1/8 to 6-1/4 in
• Minimum workpiece length: 16 in
• Maximum stock removal: 0.08 in per pass
• Sanding units: 2, drum plus platen
• Abrasive belt size: 51 x 87 in
• Belt speed: 3,545 SFPM
• Feed speed: 10 to 39 ft/min variable
• Total connected load: 35 HP
• Footprint: 94 x 75 x 83 in
• Net weight: 6,280 lb

Site services required

• Electrical: 230 V or 460 V 3-phase 60 Hz. 110 A at 230 V, 55 A at 460 V
• Compressed air: 87 PSI minimum, 9 SCFM clean dry air
• Dust extraction: two 8 in ports, 2,825 CFM total
• Floor: Level concrete, 5 in minimum slab

Supplied with

• Three abrasive belts in 80, 120 and 180 grit
• Spare platen graphite cloth
• Calibration test block and belt tracking tool
• Installation, commissioning and operator training available through the manufacturer's authorized service network, quoted separately
